Introduction

APRS World, LLC's PS2Tap is a powerful and cost-effective tool for remotely monitoring the Bergey Excel Wind Turbine with Powersync II Inverter. The PS2Tap installs inside the inverter and wirelessly provides live Internet monitoring of the turbine production and inverter health. Using your always on Internet connection, the PS2Tap makes live and historical conditions available to you through your computer's web browser and our WorldData service.

Important: The PS2Tap is only compatible with the Bergey Powersync II Inverter. Approved by Bergey, installation of the PS2Tap will not void the manufacturer's warranty. The PS2Tap will not work with the Gridtek 10 inverter.

Measures
AC Power (kW) Inverter Mode and Faults
AC Energy (kWh) DC Voltage and Current
Grid Voltage, Current and Frequency Internal Bus Voltage
PS2Tap

Free WorldData service for five years and only $10 per year thereafter!
Visit the My Bergey Website for a look at some real-time data

Important: The PS2Tap requires APRS World, LLC's RF Modem to Ethernet Gateway, 802.15.4 XBee-Pro. For customers who already have this modem for other APRS World products, the PS2Tap is available separately. For new installations, please choose the PS2Tap with Ethernet Gateway package.

Accessories

The PS2Tap is designed to work either alone or in conjunction with a variety of other APRS World products that compliment its features. The PS2 Status Annunciator allows remote verification of the operation of your PowerSync II inverter. A Remote Display option is coming soon, for non-internet based monitoring. The XRW2G gathers data from additional sensors such as anemometers and wind vanes, providing additional data collection. A sample system using the PS2Tap and these accessories can be seen in this diagram.

Pricing and Purchasing

Authorized Bergey dealers qualify for a discount equal to their Bergey dealer discount. No other discounts are available.

PS2Tap with Ethernet gateway

$655.00 USD

Part: APRS5801
Weight: 2.00 lbs

Compatible only with the Bergey Powersync II. Approved by Bergey, installation of the PS2Tap will not void the manufacturer's warranty.

Package Includes:
PS2Tap 802.15.4 XBee-PRO to Ethernet Gateway
  • RF Modem to Ethernet Gateway, 802.15.4 XBee-PRO
  • Antenna, 2.4 GHz, rubber duck, RP-SMA connector
  • Power adapter, North American
  • CAT5e ethernet cable, 3 m (10 ft)







PS2Tap Cut Sheet

PS2Tap: Monitor for Bergey Powersync II

$400.00 USD

Part: APRS5800
Weight: 1.00 lbs

The PS2Tap installs inside the inverter and wirelessly provides live Internet monitoring of the turbine production and inverter health. Using your always-on Internet connection, the PS2Tap makes live and historical conditions available to you through your computer's web browser and our WorldData service. Requires APRS World, LLC's 802.15.4 XBee-PRO to Ethernet gateway (APRS7012).

Important: The PS2Tap is compatible only with the Bergey Powersync II inverter. Approved by Bergey, installation of the PS2Tap will not void the manufacturer's warranty. The PS2Tap is will not work with the Gridtek 10 inverter.

Compatible only with the Bergey Powersync II. Approved by Bergey, installation of the PS2Tap will not void the manufacturer's warranty.

Package Includes

PS2Tap Cut Sheet

back to top

PS2Tap Accessories and Replacement Parts:

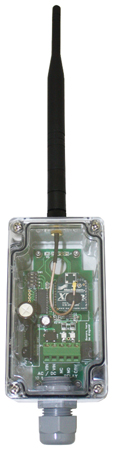

PS2 status: Wireless inverter annunciator

$250.00 USD

Part: APRS5803
Weight: 2.00 lbs

Requires APRS World, LLC's PS2Tap and a Bergey Powersync II Inverter.

Package Includes:

  • PS2 status module
  • Antenna
  • 15 m (50 ft) power cable
  • AC adapter, 24VAC
  • Hardware

Hardware Included:

  • 2 x machine screw, #6-32 x 1/2"
  • 2 x nut, #6-32
  • 2 x #6 sheet metal screw
  • 1 x 1/4"-20 sealing nut
  • 1 x 1/4"-20 truss head machine screw
PS2 Status Cut Sheet

RF modem to Ethernet gateway, 802.15.4 XBeePRO

$255.00 USD

Part: APRS7012
Weight: 1.00 lbs

APRS World, LLC's 802.15.4 Xbee to Ethernet gateway. This modem is required when purchasing a PS2Tap (APRS5800).

Package includes:

  • RF Modem to Ethernet gateway, 802.15.4 XBeePRO
  • Antenna: 2.4 GHz, rubber duck, RP-SMA connector
  • Power adapter (North American)
  • 3 m (10 ft) CAT5e Ethernet cable

RF modem to Ethernet gateway, 802.15.4 XBee

$240.00 USD

Part: APRS7013
Weight: 1.00 lbs

APRS World, LLC's 802.15.4 Xbee to Ethernet gateway. This modem is required when purchasing a PS2Tap (APRS5800).

Package includes:

  • RF Modem to Ethernet gateway, 802.15.4 XBee
  • Antenna: 2.4 GHz, rubber duck, RP-SMA connector
  • Power adapter (North American)
  • 3 m (10 ft) CAT5e Ethernet cable

PS2Tap install kit

$20.00 USD

Part: APRS2121
Weight: 0.00 lbs

Includes:

  • 2 x Machine screw, #6-32 x 1/2"
  • 2 x Nut, #6-32
  • 4 x Zip tie, 4"
  • 2 x Zip tie base
  • 1 x Magnet (to trap chips)
  • 1 x Drill bit, 5/32"
